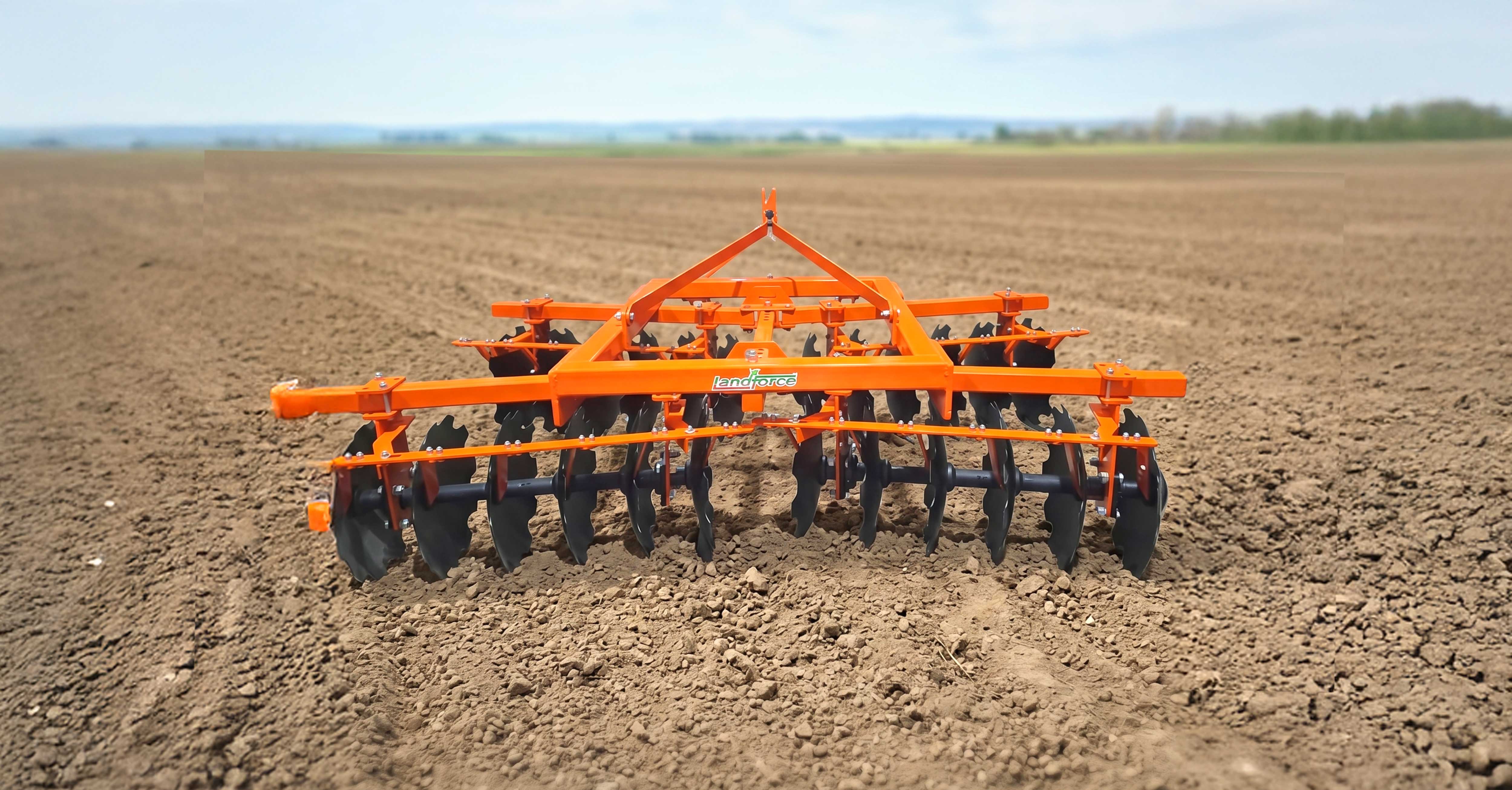

The Landforce Disc Harrow Tandem delivers efficient soil cutting and mixing with its balanced front and rear gangs. Designed for smooth operation and uniform tillage, it ensures perfect seedbed preparation in less time.
Provides superior resistance against rust, wear, and harsh field conditions for long-lasting durability.
Show More
Provides secure attachment with Cat-II tractors for stable and efficient field operation.
Show More
Sharp-edged notched discs ensure better cutting, residue handling, and improved soil penetration.
Show More
Compatible with 40–60 HP tractors, ensuring efficient and consistent performance for tandem disc harrow operations.
Show More| MODEL | Unit | LFDHTL20 | LFDHTL24 | ||
| Model Variant | 10x10 (18" Disc) | 10x10 (20" Disc) | 12x12 (18" Disc) | 12x12 (20" Disc) | |
| No. of Discs | No. | 20 | 24 | ||
| Gang Axle | 32mm (Sq. Solid Rod) | ||||
| Type of Disc | mm | Notched Disc/Plain Disc | |||
| Disc Diameter | mm | 460 (18") | 511 (20") | 460 (18") | 511 (20") |
| Disc Thickness | mm | 3 mm | |||
| Gang Adjustment | No. | Mechanical (Lead Screw Driven) | |||
| Front Gang Angle | deg | 4 Positions (13 16 19 & 23) | |||
| Rear Gang Angle | deg | 4 Positions (8 11 19 & 23) | |||
| Working Width | mm | 2295/90" | 2695/106" | ||
| Overall Width | mm | 2360/93" | 2770/109" | ||
| Overall Height | mm | 1041 | 1066 | 1041 | 1066 |
| Overall Length | mm | 1880 | |||
| Disc Spacing | No. | 228 | |||
| Bearing Hubs | No. | 8 (UCF-211) | |||
| Hitch Category | CAT-1 & CAT-II | ||||
| Tractor HP Req. | hp | 45-50 | 55-60 | ||
| Weight | kg. | 510 | 565 | 530 | 585 |
